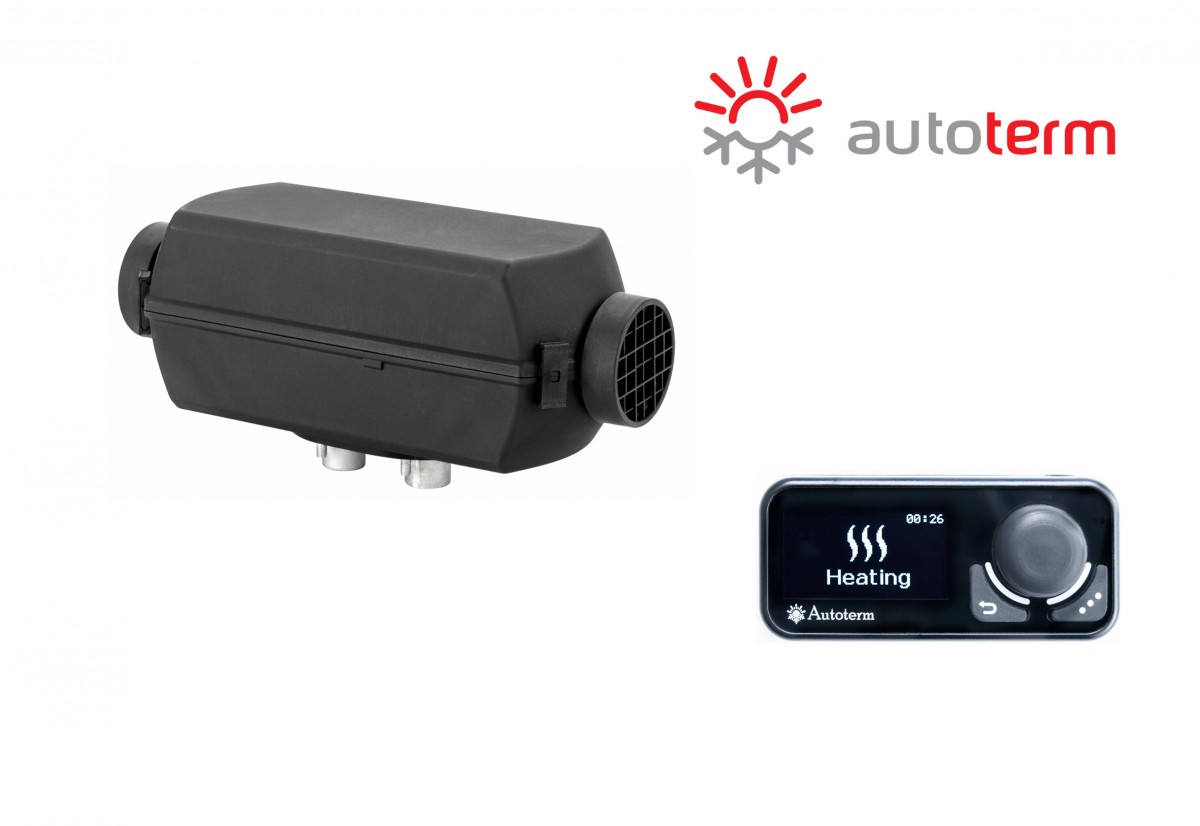

Air Heater AUTOTERM 4D with digital control panel AT0050 (Language ENG/SP/IT)

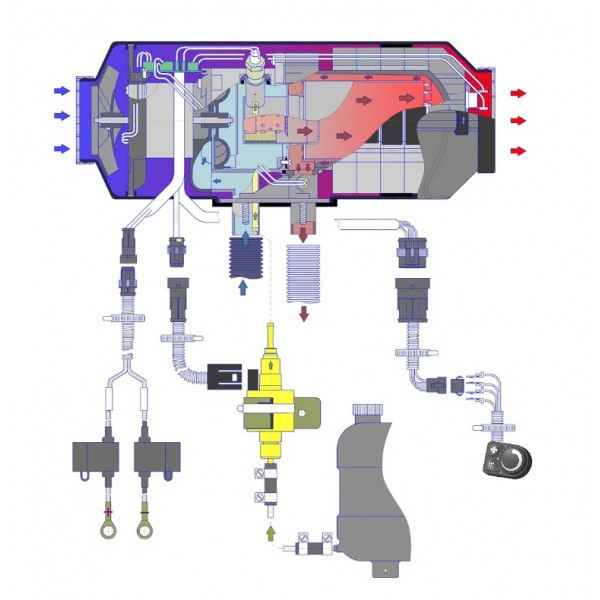

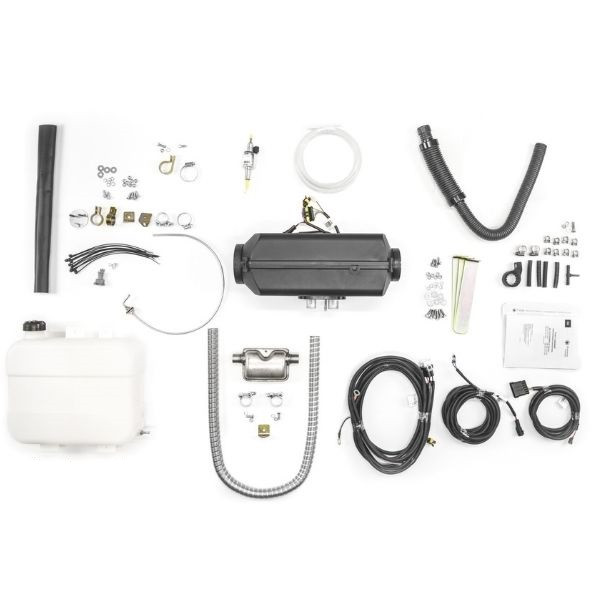

Stationary diesel heating at 12v with digital programmer control AT0050 with everything necessary for its installation.
(heating unit, programmer control, exhaust pipe and silencer, fuel line and pump, wiring, sprat...).
DOES NOT INCLUDE air distribution kit (pipe and outlets) or external probe.
Low battery and diesel consumption.
REMOTE OPTIONS:
-On and off of the heater with manual temperature regulation.
-On and off ventilation.
-Programming on and off, temperature and ventilation.
-Automatic activation of the height kit.
INDICATED PRICE OF THE EQUIPMENT. DOES NOT INCLUDE INSTALLATION. FOR AN INSTALLATION BUDGET, CONTACT info@andorracampers.com
OPTIONAL ACCESSORIES (normally necessary):
Stainless steel plate for outdoor installation: here.
Interior air intake: here.
Indoor air outlet: here. (only one air outlet can be mounted on this heater and it must be UNBLOCKABLE)
Air ducting tube (inlet): here.
Air ducting tube (outlet): here.
Redoubt necessary for departure: here.
3 meter extension cable for digital programmer (for installations where the heating is on one side of the vehicle and you want to place the digital control on the other side): here.
This pack includes

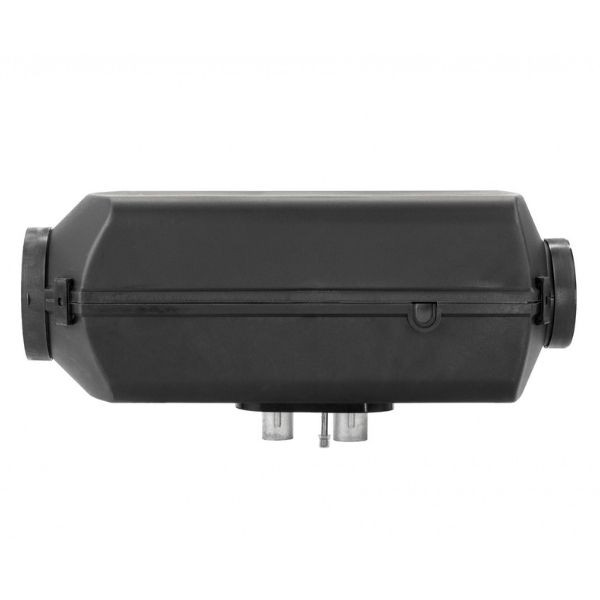

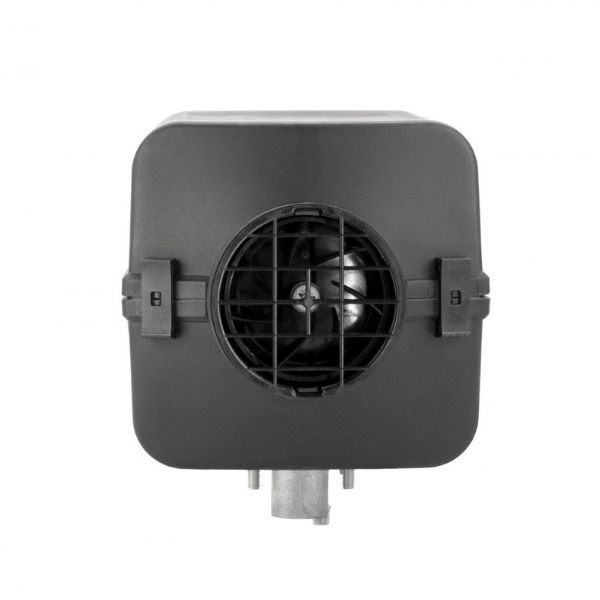

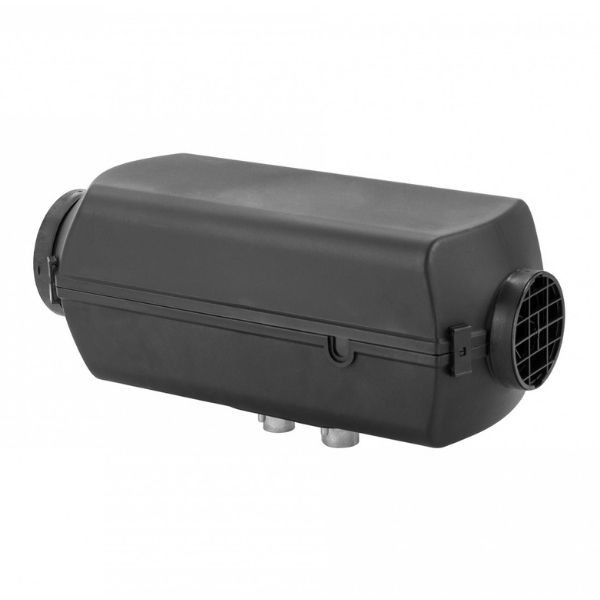

Calefacción AUTOTERM Planar 12V 4KwREF: AT/Air/4D-12 - Amount: 1
AUTOTERM AT0050 control panel
.
REF: AT0050/3 - Amount: 1
Thermal power (minimum - maximum) 1kw - 4kw.
Fuel consumption (minimum - maximum) 0.12 l/h - 0.514 l/h.
Voltage range 12V (minimum - maximum) 10W - 62W.
Hot air volume (minimum - maximum) 70m3/h - 120m3/h.
Diesel.
Manual on/off mode.
Air inlet tube diameter 80mm.
Air outlet tube diameter 96mm.
