Second battery installation kit 95Ah EURO6 with Booster LIPPERT for MB W639 and W447

Kit suitable for vans from 2014 (Euro6). Charging with a booster is the best charge we can make from the vehicle's alternator since the booster gives an orderly and constant charge. With booster the life of the second battery is extended and, even when idling, the battery receives the best possible charge from the first battery.

Spatially suitable for mounting under the seat of Mercedes 639 and 447 since the 100Ah Ultracell model does not fit in these models.

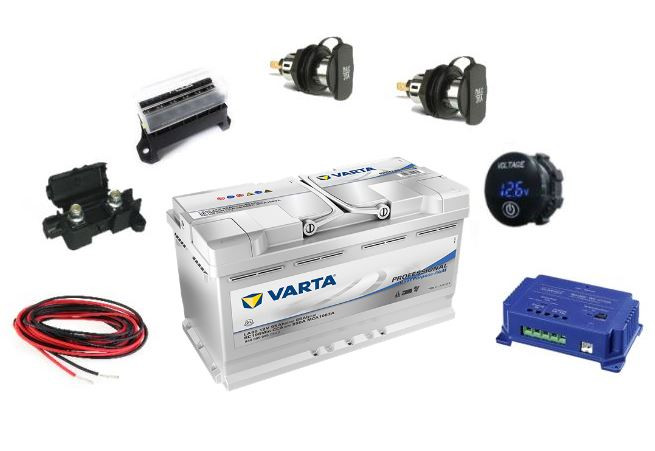

THE KIT INCLUDES:

• 1x AGM 95Ah battery. Dimensions (LxHxP): 353x175x190 mm (If it does not fit, the kit can be made with another battery).
• 1x Booster 25A Schaudt WA121525.
• 1x 6-fuse distribution box.
• 6mt x 16mm2 cable (3mt red / 3mt black).
• 6mt x 2.5mm2 cable (4mt red / 2mt black).
• 1x maxi fuse holder.
• 1x 50A fuse. maxi.
• 2x 12V socket.
• 1x led battery tester.
• 15x All necessary connections and fastons.
• 1x INSTALLATION DIAGRAM.

This pack includes

Red electrical cable between 2.5mm and 16mm (choose section)
1m/16mm
REF: 131R016.R100-16mm - Amount: 3

Black electrical cable between 2.5mm and 16mm (choose section)
1m/16mm
REF: 131N016.R100-16mm - Amount: 3

50A fuse holder
REF: R81027 - Amount: 1

MIDI Fuses 50A 5pcs
REF: R81028 - Amount: 1

Cable lug, 16 mm
Ø 8,20/16mm
REF: IFCRL404903 - Amount: 6

Booster LIPPERT 25Ah
.
REF: R800243 - Amount: 1

AGM Battery Varta 95Ah Dual Purpose
.
REF: N496184 - Amount: 1

Red electrical cable between 2.5mm and 16mm (choose section)
1m/2,5mm
REF: R810515-2,5mm - Amount: 4

Black electrical cable between 2.5mm and 16mm (choose section)
1m/2,5mm
REF: R810525-2,5mm - Amount: 2

Fuse holder for 6 fuses
REF: R81089 - Amount: 1

Standard fuse
Fuse 7.5A
REF: IFC420107 - Amount: 6

Female flat connectors, flat receptacles
Cable from 0.5 to 2.5mm
REF: IFCRL404006 - Amount: 10

12V 20A screw socket
REF: R81177 - Amount: 2

Terminal
Terminal +
REF: IFCRL840011 - Amount: 1

Terminal
Terminal -
REF: IFCRL840012 - Amount: 1

Terminal redondo aislado orificio
.Ø 6,4 mm.
REF: IFCRL402306 - Amount: 6

Voltmeter 5-48V with threaded end
.
REF: ABF12V-VOL1 - Amount: 1
